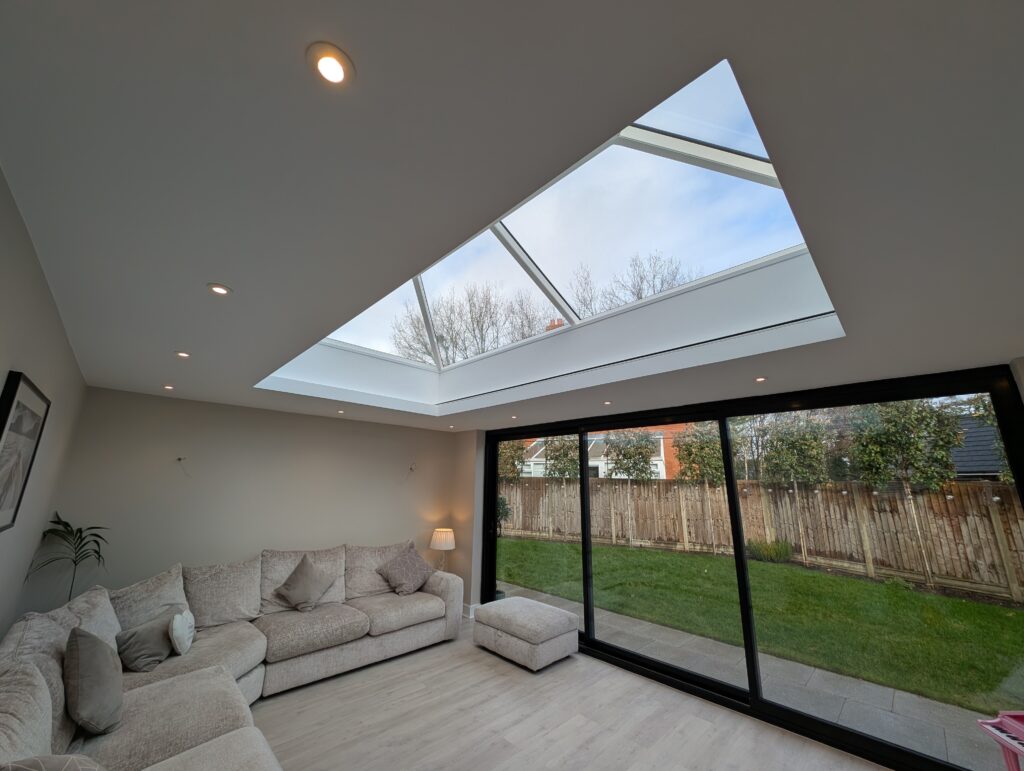

A roof lantern can transform an extension. It brings in natural light and creates a feeling of calm that many homeowners fall in love with. But that feeling only lasts if the room stays comfortable and the blind system supporting it performs as expected. Once you have identified your priorities you will understand what your space needs. The next step is to look closely at your preferences. These are the choices that shape how the blind looks and how it behaves. How well it stands the test of time.
Not all roof lantern blinds are equal. A blind is only a good investment if it delivers the results you expect in terms of performance. The fabric has to do the work whearas the blind system makes the fabric look good. The following preferences will help you understand whether WindowTreat is the right fit for your project.
Preferences are the details that define the final experience. They influence how much of the system is visible and how well it integrates with the architecture around it. The earlier you consider these choices the more freedom you have to conceal components and achieve a clean, uninterrupted finish.
By this stage, you already know what your extension needs to stay comfortable and enjoyable. Now it is time to refine the design. The following nine preferences will guide you through your options. You can create a roof lantern blind that feels well considered to the way you want to live.
Preference 1 – No visible cords or sagging fabric
If a clean, uninterrupted appearance is important, it helps to understand how different fabrics behave in a roof lantern. Some systems should rely on visible cords to stay flat.
Honeycomb fabrics contain adhesive bonds between each cell. When the temperature rises in a roof lantern these bonds soften and the fabric relaxes. This relaxation shows as sagging across the span. This is why many manufacturers keep tensioning cords in place to hold the fabric horizontal.
Roller fabrics behave differently but face a similar challenge. The fabric will naturally dip in the centre under its own weight.
Roof blind systems using constant tension springs once relied on up to two extra visible cords. These cords have since been removed to achieve a cordless look, but nothing replaced the mechanical tension they were doing. With the extra support gone, the fabric is left relying on decreasing tension from only two CTS springs. The result of this reduced tension makes sagging far more likely and far more visible especially on larger lanterns.
Achieving a cordless look without sagging means using fabrics that stay stable under tension. Roof lantern blinds need dimensionally stable roller fabrics and serious pulling power to keep everything flat. Torsion spring systems deliver that strength. The Athena and Hercules systems use this technology to give homeowners a real chance of getting a flatter fabric.
But every fabric has limits. Large spans push any material to its edge. Work within sensible size parameters and set clear expectations. A fabric suspended horizontally will always fight gravity and heat. The right system simply gives it the best chance to stay flat and look sharp.
Preference 2 – Rippling of fabric
Rippling is one of the biggest surprises homeowners experience with roller roof blinds. It often appears along both welded edges of the blind. The rippling can spread across the fabric if the blind system cannot generate enough tension to pull everything taut.
But the zip never existed to keep the fabric flat.
The welded joint between the cloth and the zip creates stiffness and extra thickness along both edges. When the blind rolls up, those thicker edges build more diameter on the tube than the centre. That uneven build up creates waviness. Larger blinds and heavier fabrics exaggerate the effect. More size means more weight. More weight means more ripples.
If the system cannot pull hard enough on the fabric, the rippling becomes obvious. That is why high tension matters. Torsion spring systems like Athena apply far more force to the cloth, and achieve a flatter finish.
Preference 3 – The fabric headbox size
The fabric headbox is one of the most important parts of any roof lantern blind, yet it’s often underestimated. Its job is simple but critical: protect your fabric. That fabric is what delivers your comfort. Without a headbox, the fabric sits exposed to dust and debris. Honeycomb blinds suffer the most because their concertina structure acts like a shelf that traps dust and reduces performance.
The headbox itself is a powder‑coated aluminium housing sized around the roller tube. The tube holds the fabric, the tubular motor, and the key working components. Shorter roof blinds use a smaller headbox because the fabric roll is smaller. Longer spans need a larger one to handle the extra fabric. Twin‑fabric systems can reduce the headbox size because each fabric only travels half the distance.
Will The Headbox Be Obstructive ?
In practice, the headbox almost always blends into the lantern’s upstand far better than homeowners expect. Hardware can be powder coated in any classic RAL colour. Most customers still choose the standard white because it disappears into the painted upstand, even on the largest systems. Claire, who invested in a seven‑metre Hercules XL, put it best: she was “really surprised how unobtrusive the headbox is. It just blends in and hasn’t spoilt anything.”
Positioning matters just as much as size. The headbox should sit so it never interrupts your view of the roof lantern. You should still see every corner and edge, even with the blind installed. The lantern stays the main feature, the star of the show.
Preference 4 – Depth of the side channels
The depth of the side channels plays a major role in how well a roof lantern blind performs. Their job is to guide the zipped fabric so it travels smoothly without drifting or telescoping off the roller tube.

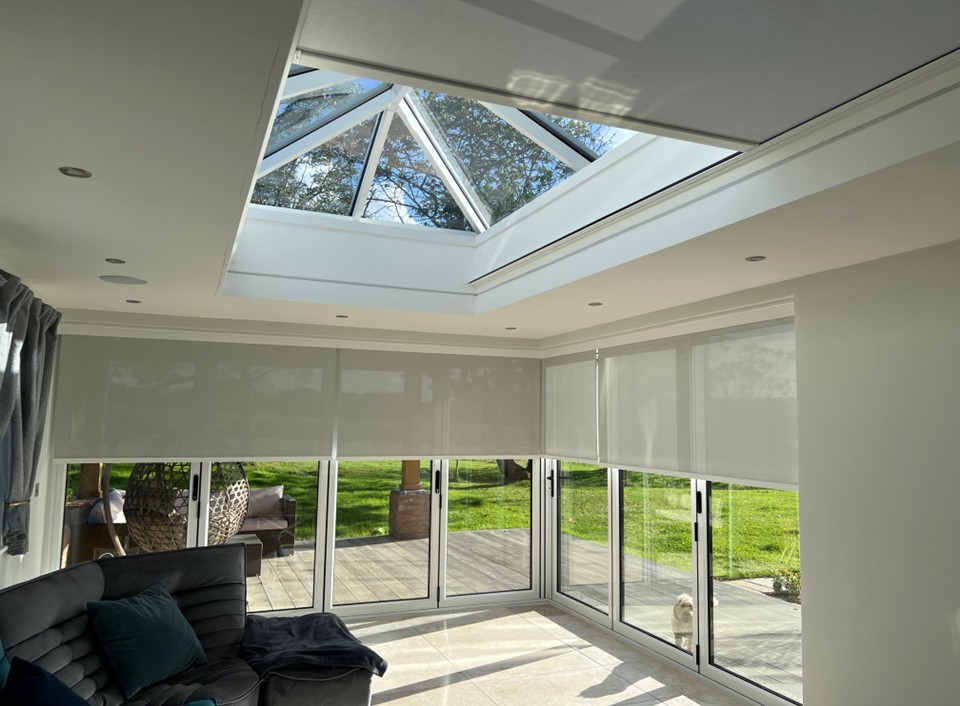

On systems such as Athena roof blinds, the side channels are adjustable. This lets the blind cope with lantern upstands that aren’t perfectly parallel while still keeping the look minimal. These channels are usually around 55 mm deep.
Some systems can position the side channels directly beneath the roof lantern. This helps the hardware sit neatly within the architecture and keeps the sightlines clean..
Other roof blind systems use aluminium shelving profiles to deal with uneven upstands. These profiles can range from 50 to 80 mm depending on the size of the roof lantern. The blind then has to be manufactured smaller so it sits square inside an opening that isn’t perfectly true.
Honeycomb systems often use trims to disguise the gaps and reduce the light bleed at the sides of the blind.
The right channel depth keeps the fabric properly guided. Its positioning in the upstand depends on how the side‑channel inserts and fabrics can handle the roof lantern temperatures.
The inserts that guide the Athena zipped fabrics are made from ABS plastic. They don’t begin to soften until they reach 100 degrees centigrade, which gives the system a strong safety margin.
Preference 5 – Direction of the blind

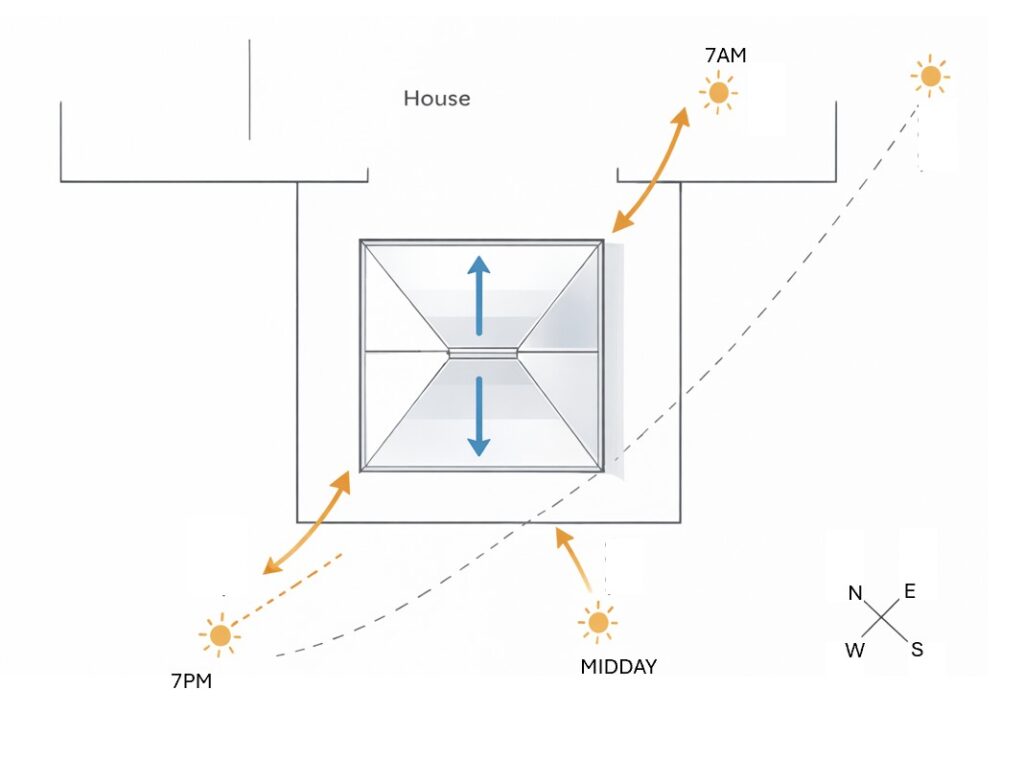

Different times of day bring different angles of glare. Many homeowners assume they’ll use the blind fully open or fully closed. In reality, most people end up using it partially open to manage glare at specific moments. To do that well, it helps to understand how the sun moves across your space throughout the day.
The direction your roof blind travels can be shaped by this preference. The power supply and the headbox containing the motor are positioned so the blind can travel away from the sunlight. This applies to all single‑blind roof systems. Twin systems are the exception, with blinds on both sides of the lantern meeting neatly in the middle.
You might want to shade the cooker so you can read the digital controls without darkening the whole room. Or perhaps a certain angle on the TV becomes unwatchable at specific times. Understanding the sun’s path helps you decide the configuration of your electric roof lantern blind.
Preference 6 – Concealing the roof blind hardware
The level of concealment realistically achievable, is about recognising at what stage you are at in the build. Design, upstand built or post build.
Concealing the roof blind hardware is easiest during the design stage. The space for your chosen blind can be planned in from the start. This allows for a flush upstand with clean lines. The fabric appears on one side and disappears on the other, creating a clean, uninterrupted look.
Patented concealment systems, such as Blindspace boxes, can also be specified at this stage. They offer the ultimate in minimalism, but they must be sized correctly for the blind. If the box is too small, the system simply won’t fit.
Once the upstand has been built, concealment becomes more challenging, but there are still options during the construction phase. The upstand can sometimes be modified to hide the blind. A shelf can be built inwards at the lower section of the upstand. Again, accuracy matters here, as the space must be sized precisely for the blind hardware.
After the build is complete, structural changes become disruptive and unrealistic. At this point, a retrofitted solution with a visible headbox and side channels is the only practical option. For most homeowners, this is perfectly acceptable, as it still delivers the performance and comfort priorities already identified. Concealment is a preference, not a priority, but when planned early it can elevate the final look significantly.
Preference 7 – Motor Choice
The motor is the hidden powerhouse of your roof lantern blind. You never see it, but you feel its impact every time the blind moves. A good motor makes the blind glide. A poor motor makes it struggle. It’s that simple. And because the motor sits inside the fabric tube, it’s easy to underestimate just how important this choice is.
A motor determines how your roof lantern blind connects to your home. How quietly it runs. How reliable it performs over the years. Choosing the right motor and your blind becomes part of your lifestyle.
Mains Powered Options
Hardwired motors with 3‑core cabling are the gold standard for homes using systems like Crestron, KNX, or Loxone. They give your home automation integrator full control, allowing the blind to behave exactly the way your home behaves. Opening with your morning routine, closing with your lighting scene, or reacting to temperature and sunlight. It’s smart living done properly.
If you want smart features without a full automation system, Somfy radio and Zigbee motors offer a clean, affordable route. Paired with the Somfy TaHoma Hub, they unlock timers, schedules, app control, voice control, and sun‑sensor protection. The standard remote keeps everyday use simple, while the hub adds the intelligence.
Battery Li-On Solar Powered Options
Not every home has wiring in the upstand, especially in retrofits. That’s where lithium‑ion battery motors could be the preferred option. A solar panel keeps the battery topped up, giving you a cable‑free installation that works beautifully on the Athena systems. These motors pair with the hub in the same way as their mains-powered counterparts. But battery motors have limits. The largest roof blinds like the Hercules, need the muscle of a mains‑powered motor to move with confidence.
Motor choice is all about planning. Get it right early and everything else falls into place. Wiring, control, integration and long‑term performance all depend on choosing the correct motor from the start. Full automation, app control or a battery‑powered setup all rely on one thing. The motor that makes the blind behave exactly as you expect.
Honeycomb roof blinds use the same motor options. The difference is the fabric. Because it’s lightweight, these blinds use lighter‑duty motors that match the reduced load.
Preference 8 – Maintenance
A roof lantern blind works hard in a tough environment. Heat, UV, dust and even the odd fly all put pressure on the system. An electric roof lantern blind stays reliable only when every component pulls its weight. High‑quality parts reduce the risk of failure, keep the system running smoothly and protect your investment over time. Fabrics, motors, springs and ABS‑moulded zip inserts all play their part. Any moving system can wear, but choosing components built for endurance keeps the chances low. Good maintenance habits do the rest.
Hardware is easier to maintain. You can wipe away dust, debris and the occasional dead fly with a clean cloth. A vacuum with an extension hose is useful. Cleaning the fabric is simple in theory: mild detergent, clean water and a soft sponge. The challenge is access. The side of the fabric that faces the glass is hard to reach. This is why preventing dirt from settling matters far more. Closing the blind when you’re not using it protects the fabric from dust and grime. It’s a small habit that makes a big difference.
Understanding The Impact Of Flies

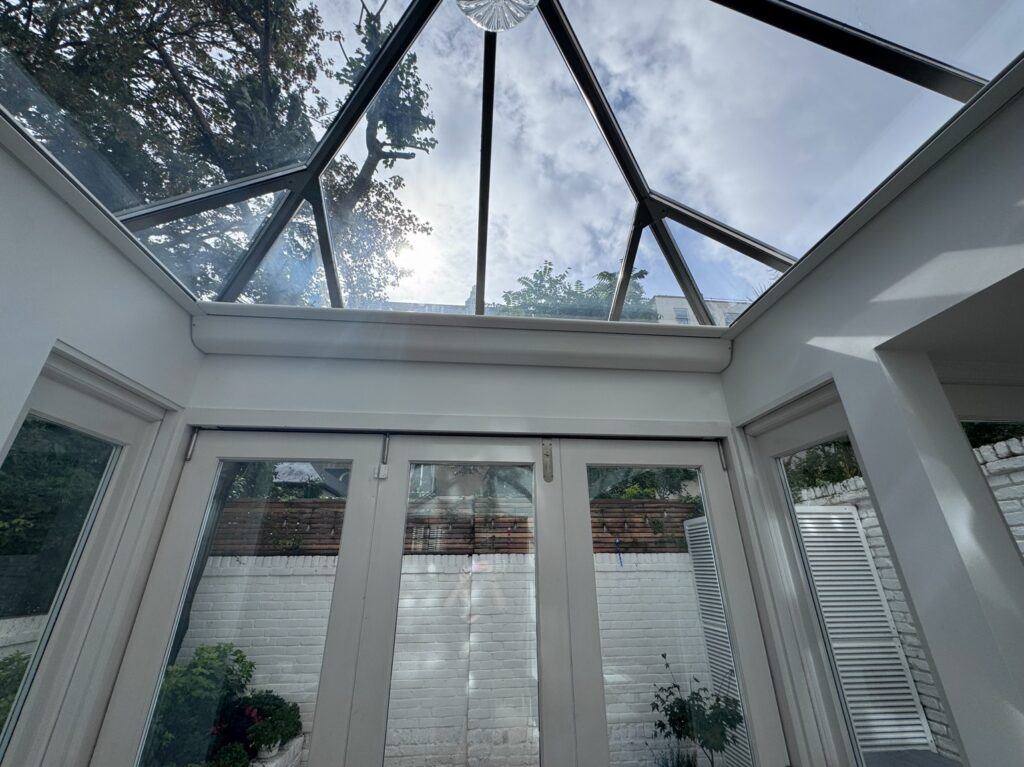

If flies are a problem in your home, a couple of extra steps help. Closing the blind before opening doors or windows to the outdoors keeps insects out of your lantern. You may also want to consider Athena headboxes facing downwards so dead flies cannot roll into the fabric. Homeowners who experience heavy fly activity should avoid honeycomb fabrics. Flies can enter the cells, buzz continuously and easily be trapped in the concertina structure.
Electric roof blinds benefit from occasional servicing to ensure the tension and moving parts remain correctly calibrated. Over time, even high performance systems can shift slightly. The Hercules carries a lot of tension, so the yachting cords may stretch slightly in the first couple of years. Small adjustments keep everything running smoothly. Just as you service your car, a little attention keeps the system performing at its best and extends its lifespan.
Preference 9 – The Fabric
The fabric is the big one.
Surprisingly, it is the part homeowners forget about when choosing an electric roof lantern blind. Other preferences take over in the mind. The focus is on avoiding visible cords, preventing sagging, hiding the system and adding Alexa voice control. But somewhere along the way, the original priorities get lost. The things you wanted to solve in the first place slip into the background. This is where the magic needs to happen.
Fabric choice has to be more scientific than simply picking dimout or blackout. It has to solve the real problems you identified at the start. Heat. TV glare. Brightness. Winter heat loss. Fading. Acoustics. This is where the data matters. You need to look at the characteristics of each fabric. The qualities that make it perform, not just the interior design aspect. Colour and style matter, but performance is what protects your living space and keeps it usable all year round. All of this while giving you the light levels and the connection to the outdoors you may want for your home. The right fabric makes the vision real without compromise.
The fabric you choose has to support the way you live in the space you’ve created. This is about turning the dream into something that works every day. It’s about keeping the vision alive and not letting it get diluted by distractions along the way. When you choose the right fabric, the blind solves the problems that brought you here in the first place.
